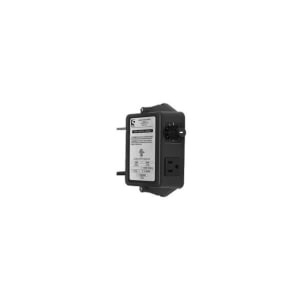

Stenner Pumps PCM10 Pump Control Module, 120 V

Stenner Pumps PCM10 Pump Control Module, 120 V

Part # : 139871

MFG # : PCM10

SKU: 346426993 Category: Brand:

Description

Item Features

  • The Stenner Pump Control Module is a component of the proportional feed system, which delivers repeatable doses regardless of the system’s flow rate.

  • The system is used in applications requiring proportional chemical injection.

  • The proportional feed system, Stenner refers to as the PCM system consists of three components: PCM pump control module, Single head fixed output pump (45 or 85 model), Dry contact water meter.

  • The water meter equipped with a reed switch sensor and cable sends a pulse signal to the PCM which activates the pump to deliver the desired dose based on water volume.

  • The PCM turns on the pump for the set duration each time a pulse is received. The on time can be adjusted to inject the correct amount of solution into the water line.

  • 1.0 to 10.0 Second Run-Time Duration

Additional information

Voltage

120 V
Specifications

Timer: Microcontroller with triac output/Turndown ratio: 10:1/Input signal: Non-voltage dry contact, water meter/Time range: Interchangeability located inside/Reset time: Immediate/Minimum signal durations: 10 milliseconds/No load current: 0.45 mA AC max
Material

Polycarbonate Plastic
