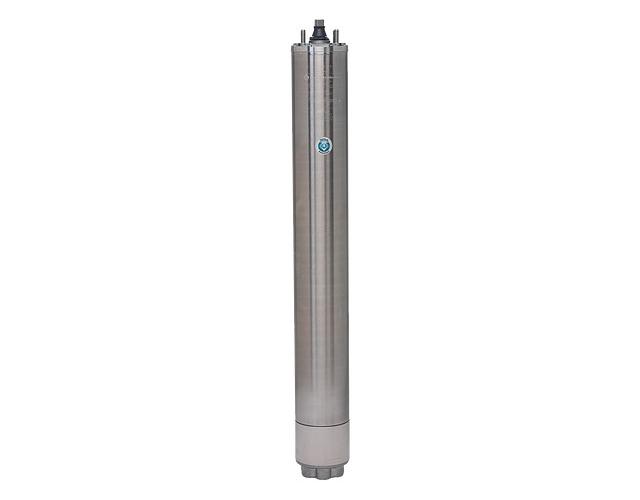

Franklin Electric 2347188802G Submersible Motor, 4 in Shaft, 7.5 hp, 230 VAC, 60 Hz, Three Phase, 3450 rpm

Franklin Electric 2347188802G Submersible Motor, 4 in Shaft, 7.5 hp, 230 VAC, 60 Hz, Three Phase, 3450 rpm

Part # : 849

MFG # : 2347188802G

SKU: 395851761 Category: Brand:

Description

Item Features

  • These motors are built for dependable operation in 4 in diameter or larger water wells

  • Water Well

  • 3-Wire

  • Corrosion-Resistant Construction

  • Stainless Steel Splined Shaft

  • Hermetically-Sealed Windings

  • Anti-Track Self-Healing Resin System

  • Water Lubrication

  • Pressure Equalizing Diaphragm

  • Sand Fighter Slinger

Additional information

Amperage Rating

21.8 A
Bearing Type

Kingsbury Thrust
Dimensions

29.18 in L
Frequency

60 Hz
Horsepower

7.5 hp
Insulation Class

B
Material

Stainless steel
Phase

Three
Rotation

CCW Rotation Facing the Shaft
Service Factor

1.15
