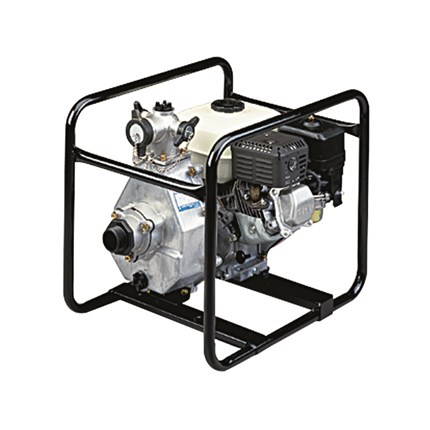

Tsurumi Pump THP-4070HA THP Driven Pumps, 1-1/2 in Inlet

Part # : 156262

MFG # : THP-4070HA

SKU: 251163436 Category: Brand:

Description

Item Features

  • Heavy-duty Honda GX160 gas engine with low oil sensor
  • Silicon Carbide mechanical seal provides the longest life in its class
  • Maximum pressure of 100 PSI for high pressure applications
  • Versatile 3-way discharge allows pump to run up to three discharge lines simultaneously
  • Two 1″ discharge couplings and one 1 1/2″ discharge coupling
  • High head, closed impeller and cast iron volute casing deliver high performance and long wear life
  • 1″x2″, 1.5″x1″ NPT Coupling Discharge Size
  • 62 lb Pump Weight
  • 5.5 hp Max Output

Additional information

Dimensions

21 L x 16 W x 18 H in

Inlet Size

1.5 in

Maximum Pressure

100 PSI

Maximum Suction Lift

1.5 in

Motor Speed

3600 rpm

Seal Material

Silicon Carbide mechanical

Series

THP

Product Type

Engine Powered Pump
